The EVO Max series adopts Autel Autonomy’s autonomous flight technology, achieving global path planning, 3D scene reconstruction, autonomous obstacle avoidance, and return-to-home in complex environments. With the capability of precise navigation without GNSS, it offers high-precision visual navigation in scenarios where GNSS signals are blocked, weak, or heavily interfered with, ensuring stable and reliable flight with high accuracy and low latency. The industry’s first A-Mesh networking technology supports the free networking of multiple devices, achieving integrated air-ground network coverage. Featuring a ”dual fisheye vision + millimeter-wave radar” multi- sensor fusion perception technology, it has 720° omnidirectional sensing and obstacle avoidance capabilities. The EVO Max series is equipped with the FusionLight camera 4T and FusionLight camera 4N, integrating a zoom camera, an ultra-starlight level night vision camera, an ultra-sensitive wide-angle camera, a thermal imaging camera, and a laser rangefinder. It efficiently empowers public safety, energy inspection, emergency management, and other fields, setting a new benchmark for industry applications of drones.

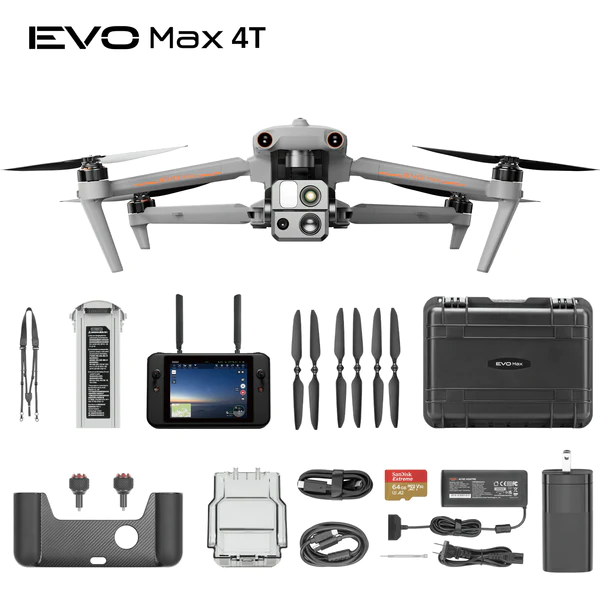

EVO MAX 4T –A Leader of Drone Intelligence

The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.

Autonomous Path Finding：Autel’s Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

Navigation in GPS Denied Environment: Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.

Accurate Object Identification and Tracking : Based on Autel’s AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

No Blind Spots-Ultimate Obstacle Avoidance

EVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T’s onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

Anti Jam-Anti Interference

The EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.

Weather Rating-IP43

A-Mesh 1.0 – The Drone Industry’s First Mesh Networking Technology

EVO Max 4T features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.

Strong Anti-Interference: The EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.

Beyond-Line-of-Sight Applications: With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness

Full-Fleet Control:Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.

Enhanced Range: Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.

Autel SkyLink 3.0

The EVO Max 4T SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.

12.4 miles: Image Transmission Distance 1080p/60fps: Real-Time Image Quality

900MHz/2.4GHz/5.2GHz/5.8GHz** : Frequency Bands <150ms Latency

Mission Ready Payload

The payload integrates wide-angle camera, zoom camera, thermal camera and a laser rangefinder for all data capture needs and critical decision making.

Wide Camera: 50MP 1/1.28″ CMOS Aperture: f/1.9 DFVO: 85° Equivalent: 23 mm

Zoom Camera: 48MP 8K 10x Optical Zoom 160x Max. Hybrid Zoom
Aperture: f/2.8-f/4.8

Thermal Camera: 640×512 Aperture: 13mm 16x Digital Zoom
Temperature Measurement Range: -20°C to 550°C

Laser Rangefinder: Measuring Range: 5 – 1200m
Measurement Accuracy: +1m

Autel Enterprise App Platform

The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T’s mission capability.

Smart Features

3D Map Planning: Plan, create, and execute 3D waypoint mission plan on a 3D map.

Quick Mission: Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

Mission Reproduction: With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4T will automatically record the camera angles and replicate the mission you just flew.

Multiple Mission Types

The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.

Rectangular Mission: One-click automatic generation of a rectangular flight area.

Automatic Mission Generation And Data Capture(pending future update):Automatically produce routes by adding regional boundary points through dots or importing KML files.

Waypoint Missions :Users can add waypointsfor flexible, non-structured flight paths.

Data Security

Privacy Protection: Data involving user and aircraft information, including flight logs, locations,and account information can only be physically accessed via the aircraft locally.

Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.

Enhanced Live-View

Multi-channel Projection Screen:Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.

AR Scene:Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone’s location and avoid airborne risks.

Autel SDK

The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.(Note: Only mobile SDK is availbel at this moment,other 2 not released yet)

Widely Application

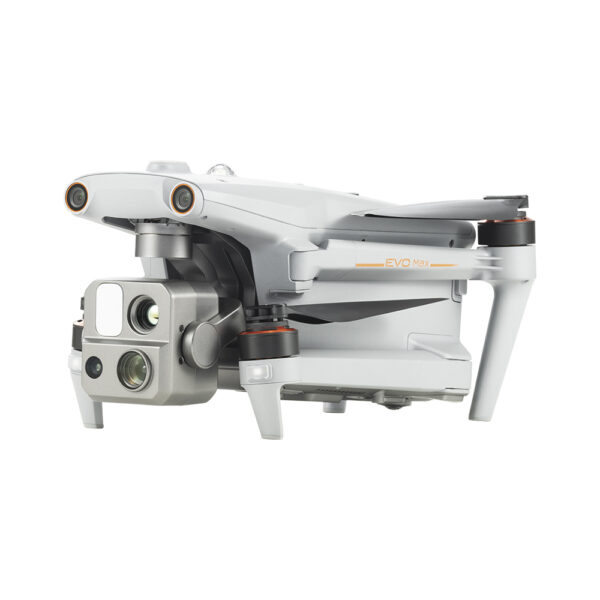

Aircraft

Weight	3.5 lbs (1600g, battery and gimbal included)
Max. Takeoff Weight	4.41 lbs (1999 g)
Dimensions	576660149 mm (folded, incl. propellers) 340407148 mm (folded, excl. propellers) 257136133 mm (unfolded, excl. propellers)
Diagonal Wheelbase	1.52 ft (464mm)
Max Ascent Speed	8m/s
Max Descent Speed	6m/s
Max Horizontal Speed (windless near sea level)	23m/s *Maximum speed in Ludicrous Mode is 19m/s when operating in EU regions.
Max Service Ceiling Above Sea Level	23000ft (7000m)
Max Flight Time (windless)	42 mins
Max Hovering Time (windless)	38 mins
Max Wind Resistance	27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
IP Rating	IP43
Max Tilt Angle	35°
Max Angular Velocity	Pitch: 300°/s; Yaw: 120°/s
Operating Temperature	-4°F to 122°F (-20℃ – 50℃)
Operating Frequency	2.4G/5.2G/5.8G/900MHz
GNSS	GPS+Galileo+BeiDou+GLONASS
Transmitter Power (EIRP)	2.4GHz:<33dBm(FCC), <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)
Hovering Accuracy	Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.1 m (RTK enabled);

Gimbal

Mechanical Range	Pan: -135° to 45° Tilt: -45° to 45° Roll: -45° to 45°
Controllable Range	-90° to 30°
Stable system	3-axis mechanical gimbal (pan, tilt, roll)
Max Control Speed (pitch)	200º/s
Angular Vibration Range	<0.005°

Zoom Camera (Telephoto)

Sensor	1/2″ CMOS, Effective pixels: 48M
Lens	Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8
Exposure Compensation	±3EV 0.3EV/step
ISO Range	Normal Mode： Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400
Shutter Speed	Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
Max Photo Size	8000×6000
Max Video Resolution	7680×4320

Wide Camera

Sensor	1/1.28 CMOS, Effective pixels: 50M
Lens	DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus
Exposure Compensation	±3EV 0.3EV/step
ISO Range	Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400
Shutter Speed	Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
Max. Video Resolution	3840×2160
Photo Size	81926144 40963072

Thermal Camera

Thermal Imager	Uncooled VOx Microbolometer
Lens	DFOV: 42° IFOV: 0.92mrad Aperture: 13mm Focus: f/1.2
Infrared Temperature Measurement Accuracy	26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉
Video Resolution	640*512
Photo Size	640*512
Pixel Pitch	12 um
Temperature Measurement Method	Center measurement, pot measurement, rectangular measurement
Temperature Measurement Range	-4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
Temperature Alert	High and low temperature alarm thresholds, reporting coordinates and temperature values

Laser Range Finder

Measurement Accuracy ±3.3ft (1m)

Measuring Range 3937ft (1200m)

Image Transmission

Operating Frequency	2.4G/5.2G/5.8G/900MHz *5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
Max Transmission Distance (unobstructed, free of interference)	12.4 miles/20km (FCC), 4.9 miles/8km (CE)
Independent Networking	Autel Smart Controller V3
Transmitter Power (EIRP)	2.4GHz:<33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)

Autonomy

Non-GPS Hovering and Manual Flight	Indoor: Horizontal error ≤1.18in (At least have texture at one direction） Outdoor: Daytime: Within 1640ft (500m) flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 328ft (100m) flight height
Non-GPS Return-to-Home	Within 1640ft (500m) flight height, horizontal error of Return-to-Home point < 11.81in
Automatic Obstacle Rerouting	High Speed Obstacle Rerouting: Flight speed up to 45mph (20m/s) when Min. safety distance to obstacle is 4.9ft (1.5m) High Precision Obstacle Rerouting: Flight speed could reach 6.7mph (3m/s) when Min. safety distance to obstacle is 1.64ft (0.5m)
Multi-target Recognition and Tracking	Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85%

Millimeter-wave Radar Sensing System

Frequency	60Ghz~64Ghz* *Please fly safely and consult your local laws and regulations.
Size	1.50.550.08 in (38142mm) (LWH)
Weight	0.07oz (2g)
EIRP	18dBm
Sensing Range	Upward: 5.9~787.4in (0.15~20m) Downward: 3.9~4724.4in(0.1~120m) Forward and Backward (Standard/Comfortable): 0.82~98.43ft (0.25~30m) Forward and Backward（Ludicrous）: 1.64~196.85ft (0.5~60m)
FOV	Horizontal（6dB）：±60°，Vertical（6dB）：±30°
Speed Measurement Range	± 134mph (60m/s)
Speed Measurement Accuracy	≤1%
Max. Target Detection Number	32

Visual Sensing System

Obstacle Sensing Range Forward/Upward/Downward/Backward/Sideward: 0.2~50m

FOV Forward/Backward/Sideward: 60°(H)，80°(V)
Upward/Downward: 360°(H)，190°(V)

Autel Smart Controller V3

Screen	7.9 inch, 2000nits max. brightness, 2048*1536 resolution
External Battery	Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery
Operating Time	3 hours (Max. brightness) 4.5 hours (50% brightness)
Max Transmission Distance (with interference)	12.4 miles/20km (FCC), 4.9 miles/8km (CE)
IP Rating	IP43
Storage	128G
GNSS	GPS+GLONASS+Galileo+Beidou+NavIC+QZSS
Operating Temperature	-4°F to 104°F (-20℃ to 40℃)
Wi-Fi Protocol	WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi
Operating Frequency	2.400 – 2.4835 GHz； 5.150 – 5.250GHz； 5.725 ‒ 5.850 GHz
Transmitter Power (EIRP)	2.400 – 2.4835 GHz FCC/CE:≤20dBm 5.150 – 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm

Aircraft Battery

Capacity	8070mAh
Voltage	14.88V
Battery Type	LiPo 4S
Energy	120wh
Net Weight	1.15 lbs (520g)
Charging Temperature	41° F to 113° F (5ºC to 45ºC) When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery.
Hot Swap	Support

Measurement Accuracy	±3.3ft (1m)
Measuring Range	3937ft (1200m)

Obstacle Sensing Range	Forward/Upward/Downward/Backward/Sideward: 0.2~50m
FOV	Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V)
